15 mm Implant Drilling Kit
Crown Down Implant Drilling Kit, 15 mm
The full Crown Down 2-drill protocol in a 15 mm-length tungsten carbide kit, sized for standard implant osteotomies.

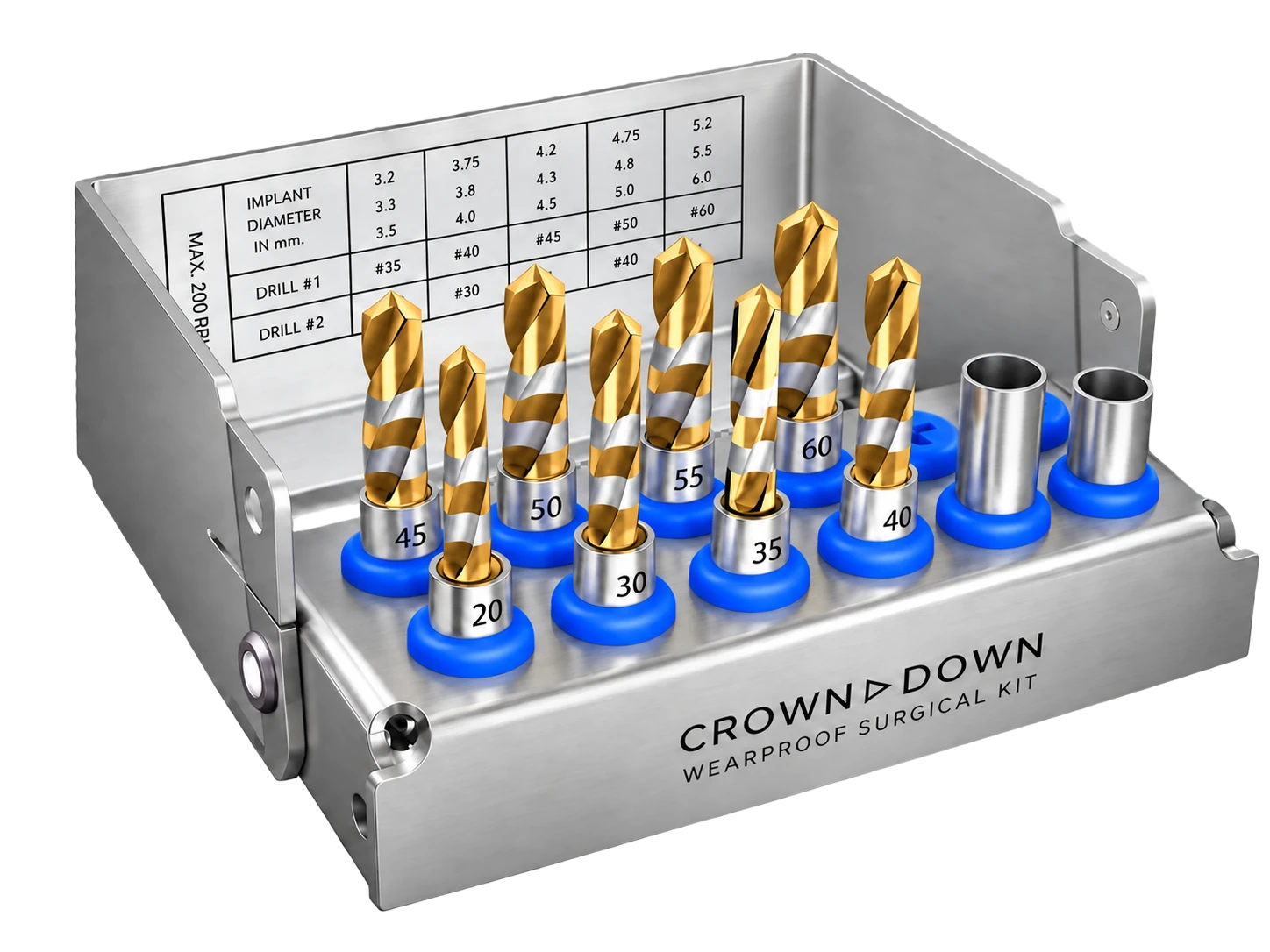

The Crown Down 15 mm implant drilling kit replaces a long steel drill sequence with two solid tungsten carbide drills per implant site. Eight drill diameters from Ø 2.75 mm (#20) to Ø 6.0 mm (#60) cover the full range of standard implant osteotomies for guided and freehand surgery, with universal compatibility across major implant systems.
- 8 solid tungsten carbide drills, Ø 2.75 mm to Ø 6.0 mm
- 2-drill protocol per implant site for faster osteotomy preparation
- 15 mm working length for standard implant osteotomies
- Universal compatibility with all major implant systems and platforms
- Compatible with guided surgery sleeves and 3D drill stoppers
- CE Mark and FDA approved · patent WO2023044570A1
- Lifetime wear-performance warranty
Specifications
- SKU
- CD-KIT-L015
- Drill Material
- Solid Tungsten Carbide
- Drill Length
- 15 mm
- Drill Diameters
- Ø 2.75 mm, 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm
- Drill Count
- 8 drills (#20, #30, #35, #40, #45, #50, #55, #60)
- Protocol
- Crown Down 2-drill osteotomy protocol
- Recommended RPM
- 200 RPM
- Irrigation
- Irrigation is contraindicated for the Crown Down protocol
- Lock Mechanism
- Morse taper 1.5°
- Compatibility
- Universal: works with all major implant systems and platforms
- Sterilization
- Steam autoclave at 136°C for 20 minutes
- Regulatory
- CE Mark · FDA approved
- Patent
- WO2023044570A1 (Inventor: Dr. Zvi Fudim)
- Warranty
- Lifetime wear-performance warranty
Clinical Use Cases
Standard Implant Osteotomies
Day-to-day implant placement where 15 mm of working depth is sufficient for the planned osteotomy.
Freehand Implant Surgery
Direct tactile feedback through bone with two carbide drills per site instead of a long steel sequence.
Guided Implant Surgery
Pairs with surgical guides and Crown Down 3D stoppers for predictable depth and position control.
Multi-System Practices
Works across major implant systems so you do not need a separate drill kit per implant brand.
Engineering

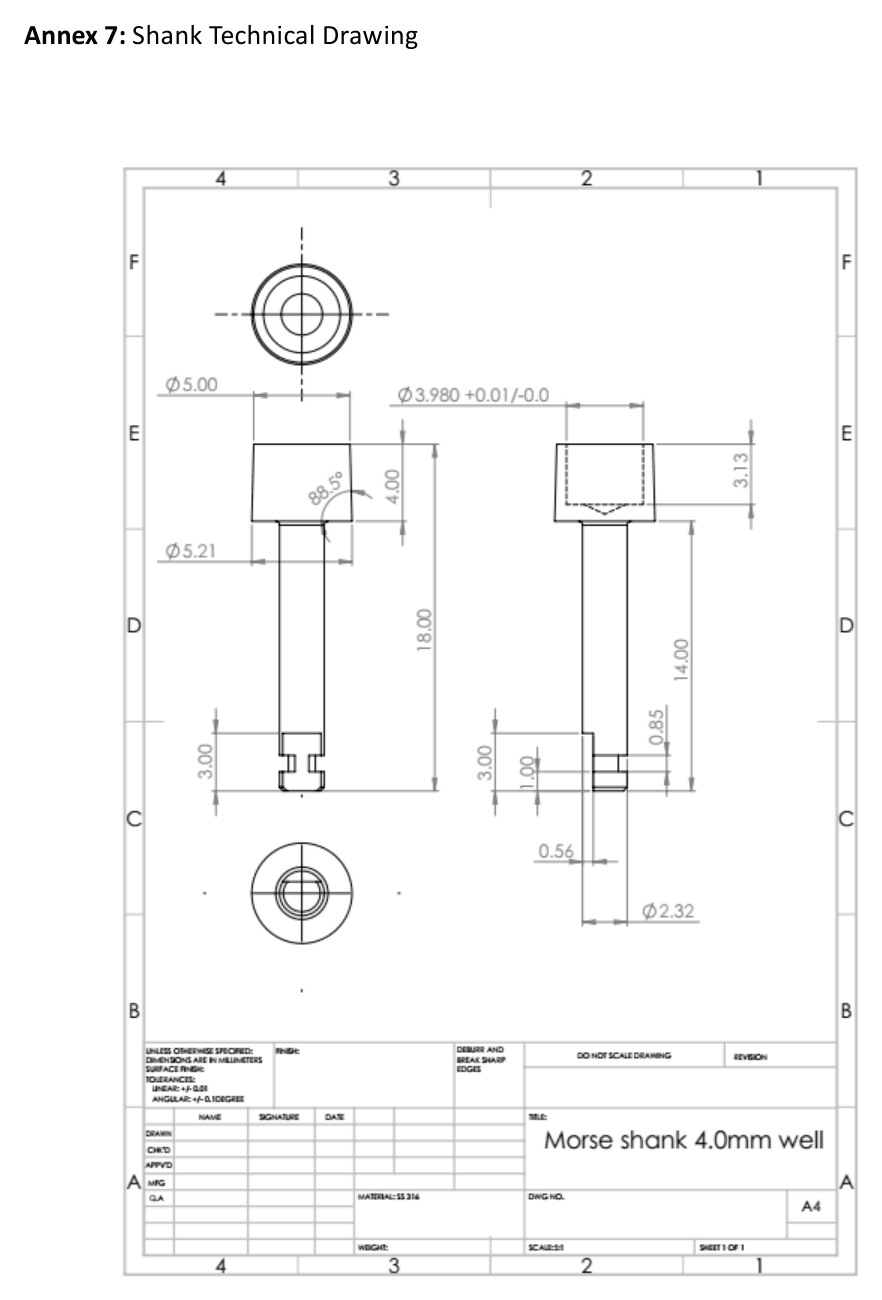

Drill Shank Geometry
Crown Down drills use a Morse-style locking shank with a 4.0 mm well that mates positively with standard contra-angle handpieces.
Frequently Asked Questions
Both kits use the same 2-drill protocol and the same solid tungsten carbide implant drills. The 15 mm kit is the right choice for standard implant osteotomies. Choose the 20 mm kit if you regularly treat longer osteotomies or deeper guided cases.
Yes. The Crown Down 15 mm kit is designed for universal compatibility across major implant systems for both guided and freehand surgery.
Crown Down drills are engineered for long-term clinical use under normal drilling conditions and are backed by a lifetime wear-performance warranty. They are designed to resist routine dulling that drives steel drill replacement.
Yes. Crown Down 3D stoppers attach to the drill shank and are designed specifically as a guided surgery accessory for depth and position control. They are available separately in 8, 10, and 12 mm.
The 15 mm Crown Down implant drilling kit is $3,495.00 USD. Practice and volume pricing are available on request.
Ready to bring the 15 mm kit into your practice?
Book a clinical demo to walk through pricing, the 2-drill protocol, and how this fits your workflow.
