One Implant Drilling Kit, Every Implant System
The Crown Down 2-drill protocol is designed to work universally with major implant systems and platforms. Each system below has a published Crown Down user manual and drilling chart.
Why universal compatibility matters
The cost of brand-locked drill kits.
Conventional implant drill kits are sold as part of a single manufacturer’s system: Nobel Biocare drills with Nobel Biocare implants, Straumann drills with Straumann implants, and so on for every major brand. Each kit costs $1,500 to $3,500 and only works inside its own ecosystem. The moment a clinician adds a second implant brand to the practice (and most do; the average implant practice runs 2 to 3 brands), the drill spend doubles.
Universal compatibility is what eliminates that overhead. Crown Down is not a Crown Down implant system; it is a drill system that prepares the osteotomy to standardized diameters, then maps those diameters to whatever implant brand you are placing. One kit, one tray, every case.
Mechanical compatibility
The drill shank uses an open-standard Morse 1.5° taper with a 4.0 mm well, mating with any standard contra-angle handpiece. No brand-specific driver, no proprietary connection, no adapter required.
Protocol compatibility
Each implant system in the table below has a published Crown Down drilling chart that maps the 2-drill protocol to the implant manufacturer’s recommended osteotomy diameters at every depth.
If your implant system is not listed in the table, the mechanical compatibility still applies (the handpiece interface is universal); the only missing piece is the written protocol mapping. Book a clinical demo and we will walk through the diameter mapping for your specific system and add it to this page.

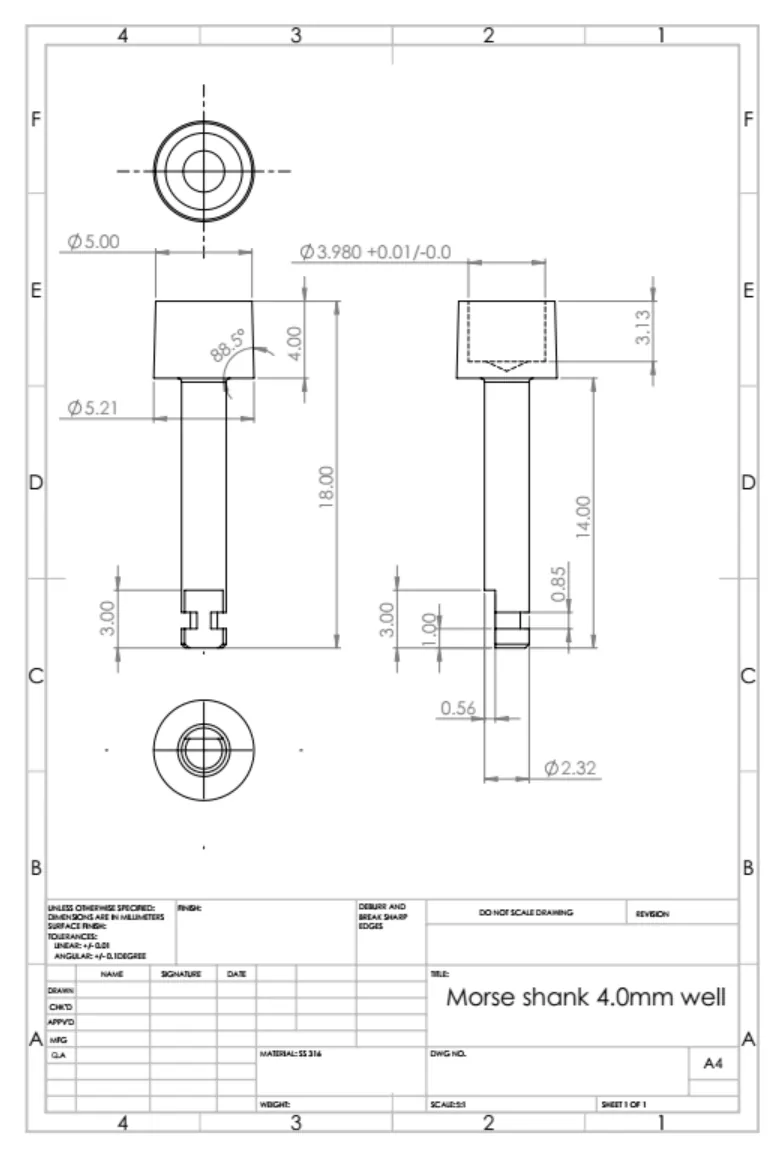

Handpiece Interface
Drill Shank Geometry
Crown Down drills use a Morse-style locking shank with a 4.0 mm well that mates positively with standard contra-angle handpieces, so you do not need a brand-specific drill driver to run the protocol.
Validated Implant Systems
26 implant system mappings available. Click any system to download its Crown Down drilling chart and user manual (PDF).
| Brand | Implant Line | User Manual |
|---|---|---|
| Nobel Biocare | Nobel Parallel CC | Download |
| Straumann | BL (Bone Level) | Download |
| Straumann | BLC (Bone Level Conical) | Download |
| Zimmer Biomet | TSV | Download |
| Dentsply Sirona / Astra Tech | EV OsseoSpeed | Download |
| Dentsply Sirona / Astra Tech | Astra Tech (general) | Download |
| BioHorizons | Tapered / Pro | Download |
| Camlog | Camlog Screw-Line | Download |
| Neodent | Grand Morse (GM) | Download |
| Hiossen | Hiossen ETIII / NH | Download |
| AB Dental | AB Implants | Download |
| Bicon | Short / Plateau | Download |
| Biotem | Biotem Implants | Download |
| Dentis | Axel / S-Clean | Download |
| IBS Implant | Magicore | Download |
| Noris Medical | Tuff | Download |
| Onedaybiotech | Onedaybiotech Implants | Download |
| Trate / Roott | Roott Compressive | Download |
| Trate / Roott | Roott (alternative) | Download |
| S.I.N. Implant | S.I.N. System | Download |
| SDS | SDS Bright (ceramic) | Download |
| JDIcon | JDIcon System | Download |
| Bio-Line | Bio-Line (Spanish) | Download |
| Mono | Mono Implants (Spanish) | Download |
| Generic / 32 mm | Long-implant 32 mm reference | Download |
| Crown Down | General user manual | Download |
Implant brand and product names are trademarks of their respective owners. Crown Down references these systems for compatibility mapping only and is not affiliated with any implant manufacturer.
Placing Straumann?
The dedicated Straumann page covers the BL / BLC drilling protocol, 5-year cost math against a Straumann steel kit, and handpiece-interface compatibility.
Placing Nobel Biocare?
The dedicated Nobel Biocare page covers NobelParallel CC, NobelActive, and NobelReplace CC, guided-surgery workflow through DTX Studio, and the 5-year cost math against a Nobel steel kit.
Placing Zimmer Biomet / ZimVie?
The dedicated Zimmer / ZimVie page covers Tapered Screw-Vent (TSV), Trabecular Metal T3, and Eztetic, guided-surgery workflow through RealGUIDE, and the 5-year cost math against a Zimmer TSV steel kit.
Placing Dentsply / Astra Tech?
The dedicated Astra Tech page covers OsseoSpeed EV, XiVE, and Ankylos, guided-surgery workflow through Simplant and Atlantis WebOrder, and the 5-year cost math against an Astra steel kit.
Placing BioHorizons?
The dedicated BioHorizons page covers Tapered Internal (Laser-Lok), Tapered Pro, and 3.4 Prevail, guided-surgery workflow through Simple Solutions, and the 5-year cost math against a BioHorizons steel kit.
Placing Neodent?
The dedicated Neodent page covers Grand Morse (Helix GM and Drive GM), Titamax CM, Alvim, and Facility, addresses the Grand Morse connection, and models the 5-year cost of a Neodent steel kit — the tightest brand-vs-Crown-Down math on the site.
Regulatory & Intellectual Property
CE Mark
Crown Down kits and individual drills carry CE marking for use in the European Economic Area.
FDA
Crown Down has FDA approval for use in the United States.
Patent
WO2023044570A1. Inventor: Dr. Zvi Fudim.
Frequently asked questions
Quick answers to questions clinicians ask most about this topic.
Don’t see your implant system?
Book a clinical demo and we’ll walk through compatibility for your specific implant system, the 2-drill protocol, and how Crown Down fits your workflow.
