Why choose the 20 mm Crown Down kit instead of the 15 mm kit?

Both kits use the same 2-drill protocol and the same solid tungsten carbide implant drills. The 20 mm kit is the right choice if you regularly treat longer osteotomies or deeper guided cases that require more than 15 mm of working drill length.

Are the 20 mm drills compatible with surgical guides?

Yes. The 20 mm length is intended for cases where a surgical guide adds height above the osteotomy and a longer drill is required to reach planned depth.

How long do Crown Down tungsten carbide drills last?

Crown Down drills are engineered for long-term clinical use under normal drilling conditions and are backed by a lifetime wear-performance warranty. They are designed to resist routine dulling that drives steel drill replacement.

Can I run the same protocol on both the 15 mm and 20 mm kit?

Yes. The Crown Down 2-drill osteotomy protocol is identical between the 15 mm and 20 mm kits. Only the drill working length differs.

What is the price of the 20 mm Crown Down kit?

The 20 mm Crown Down implant drilling kit is $3,495.00 USD. Practice and volume pricing are available on request.

20 mm Implant Drilling Kit

Crown Down Implant Drilling Kit, 20 mm

Name: Crown Down Implant Drilling Kit, 20 mm
Brand: Crown Down
SKU: CD-KIT-L020
Price: 3495.00 USD
Availability: InStock
Rating: 5.0 (6 reviews)

The full Crown Down 2-drill protocol in a 20 mm-length tungsten carbide kit, designed for longer osteotomies and deeper guided cases.

$3,495.00USD

CD-KIT-L020|Solid Tungsten Carbide

View Full Catalog

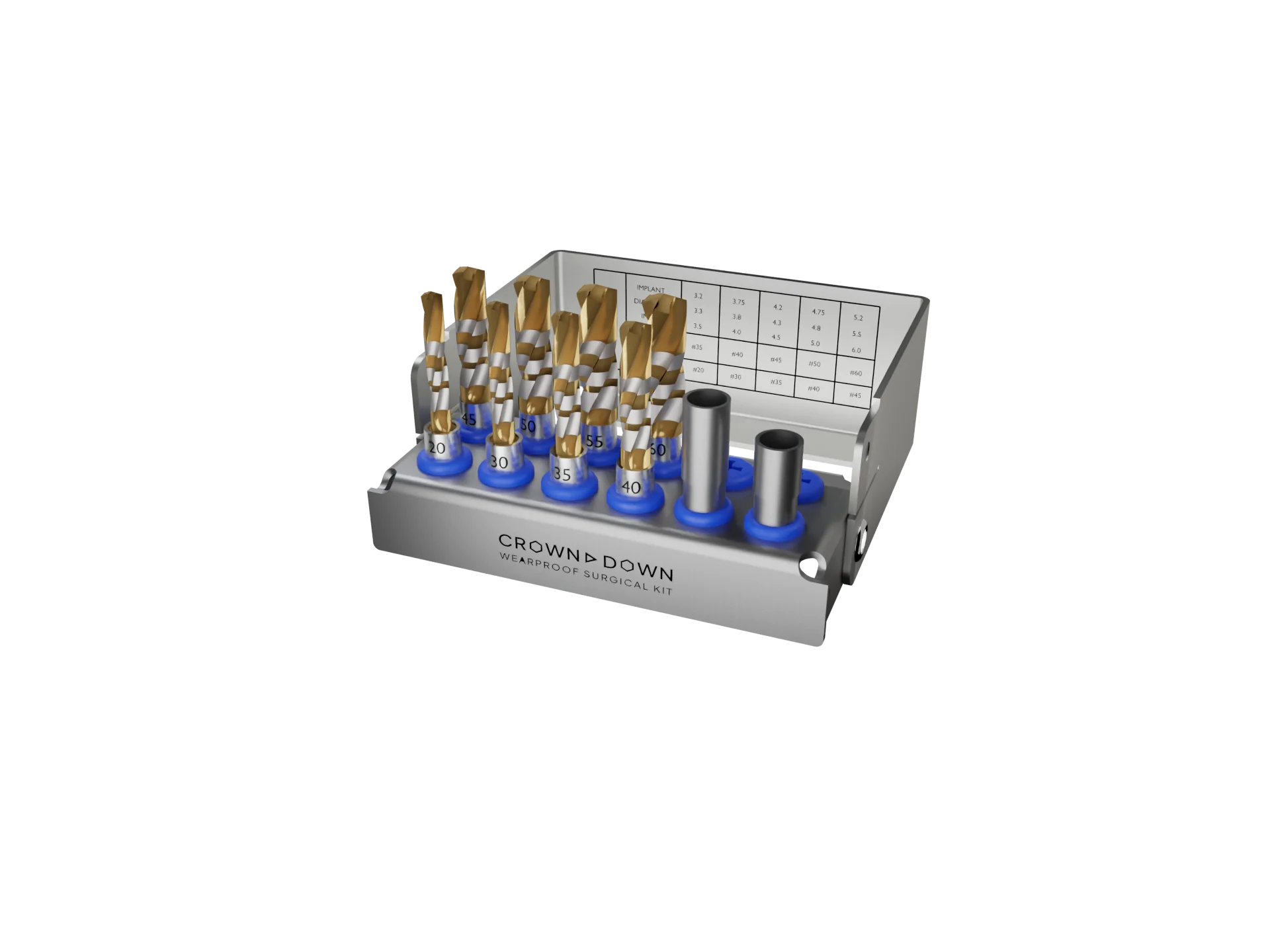

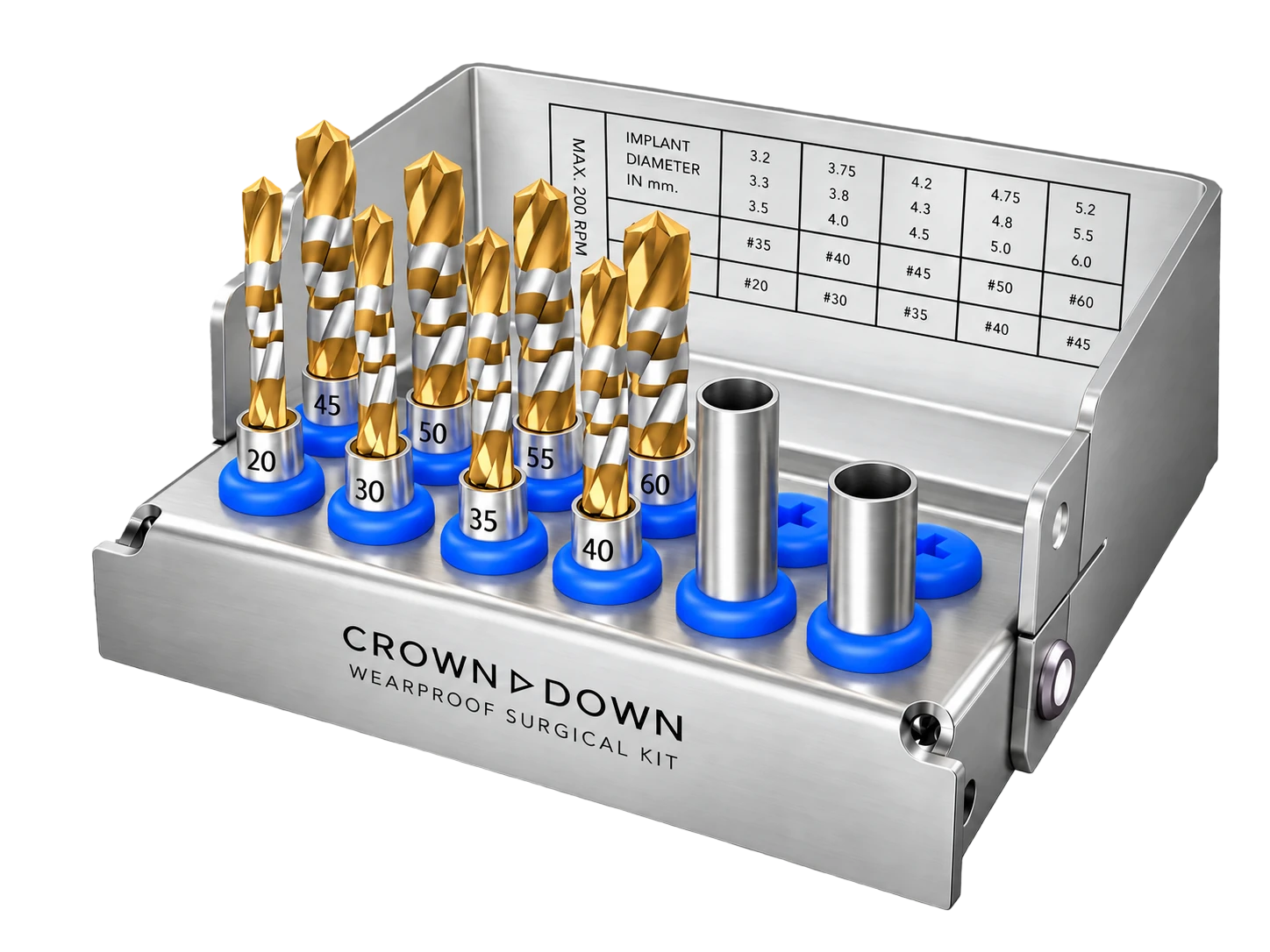

The Crown Down 20 mm implant drilling kit replaces a long steel drill sequence with two solid tungsten carbide drills per implant site, in 20 mm working lengths for longer osteotomies. Eight drill diameters from Ø 2.75 mm (#20) to Ø 6.0 mm (#60) cover deep guided cases and freehand surgery, with universal compatibility across major implant systems.

8 solid tungsten carbide drills, Ø 2.75 mm to Ø 6.0 mm
2-drill protocol per implant site for faster osteotomy preparation
20 mm working length for longer osteotomies and deep guided cases
Universal compatibility with all major implant systems and platforms
Compatible with guided surgery sleeves and 3D drill stoppers
CE Mark and FDA approved · patent WO2023044570A1
Lifetime wear-performance warranty

Specifications

SKU: CD-KIT-L020
Drill Material: Solid Tungsten Carbide
Drill Length: 20 mm
Drill Diameters: Ø 2.75 mm, 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm
Drill Count: 8 drills (#20, #30, #35, #40, #45, #50, #55, #60)
Protocol: Crown Down 2-drill osteotomy protocol
Recommended RPM: 200 RPM
Irrigation: Irrigation is contraindicated for the Crown Down protocol
Lock Mechanism: Morse taper 1.5°
Compatibility: Universal: works with all major implant systems and platforms
Sterilization: Steam autoclave at 136°C for 20 minutes
Regulatory: CE Mark · FDA approved
Patent: WO2023044570A1 (Inventor: Dr. Zvi Fudim)
Warranty: Lifetime wear-performance warranty

Clinical Use Cases

Long Implant Osteotomies
Cases that require more than 15 mm of working depth, including longer implants and demanding bone anatomy.
Deep Guided Cases
Fully guided implant placements where the surgical guide adds height above the osteotomy and longer drills are needed to reach planned depth.
Freehand Implant Surgery
Direct tactile feedback through bone with two carbide drills per site instead of a long steel sequence.
Multi-System Practices
Works across major implant systems so you do not need a separate drill kit per implant brand.

Drill length guide

When 20 mm is the right drill length.

The 20 mm kit exists for cases where 15 mm of working depth does not reach the planned apex. There are three clinical scenarios where the extra length matters, and recognizing them before the procedure starts is what makes the kit choice predictable.

1. Fully guided surgery with a sleeve stack

A typical surgical guide adds 5 to 7 mm above the crestal bone once you account for the guide thickness and the drill shoulder. A 15 mm working length minus a 6 mm guide stack leaves only 9 mm of in-bone reach, which is short of most standard implant lengths. The 20 mm kit restores the full in-bone reach for guided cases regardless of guide thickness.

2. Long implants and full-arch reconstructions

Implants 13 mm and longer (common in posterior mandibular sites, All-on-X protocols, and tilted-implant rehabilitation) require enough drill length to safely reach the planned apex with clearance for the shoulder and stopper. The 20 mm kit is the default for any practice that places long implants regularly.

3. Thick keratinized tissue and deep alveolar anatomy

In sites with thick keratinized gingiva or a deep buccal shelf, the soft-tissue offset alone can consume 3 to 4 mm of drill length before the cortical pass even begins. The 20 mm length keeps the cutting flutes engaged through the full osteotomy rather than the shoulder running against the shank.

If your practice is split between standard and long osteotomies, the 20 mm kit covers both. The drill diameters and the 2-drill protocol are identical to the 15 mm kit, so there is no retraining and no procedural change. Only the apical reach differs.

Compare: 20 mm vs 15 mm

Both kits run the same Crown Down 2-drill protocol with the same solid tungsten carbide drills. The only difference is drill working length.

Specification	Crown Down 20 mm KitThis kit	Crown Down 15 mm Kit
SKU	CD-KIT-L020	CD-KIT-L015
Drill working length	20 mm	15 mm
Drill diameters	Ø 2.75 to 6.0 mm (#20 to #60)	Ø 2.75 to 6.0 mm (#20 to #60)
Drill count	8 drills	8 drills
Material	Solid tungsten carbide	Solid tungsten carbide
Protocol	2-drill	2-drill
Best for	Long osteotomies and deeper guided cases	Standard implant osteotomies
Guided surgery	Yes (extra clearance for guides)	Yes (with guide sleeves)
Lock mechanism	Morse taper 1.5°	Morse taper 1.5°
Price	$3,495 USD	$3,495 USD
